Waveshare LC29H Series Dual-Band GPS Module for Raspberry Pi, Dual-Band L1+L5 Positioning Technology, Supports RTK Rover to Realize High-Precision Centimeter-Level Positioning

Marque: Waveshare
Type de service du véhicule: Voiture
Caractéristique spéciale: Plusieurs systèmes GNSS et suppression des interférences
Technologie de connectivité: Wi-Fi 5, USB
Composants inclus: WIFI
Mode de sortie audio: Numérique
Type de fixation: Montage sur carte
Système d'exploitation: Linux
Appareils compatibles: Raspberry Pi, Jetson Nano
Des piles sont-elles incluses ?: Non

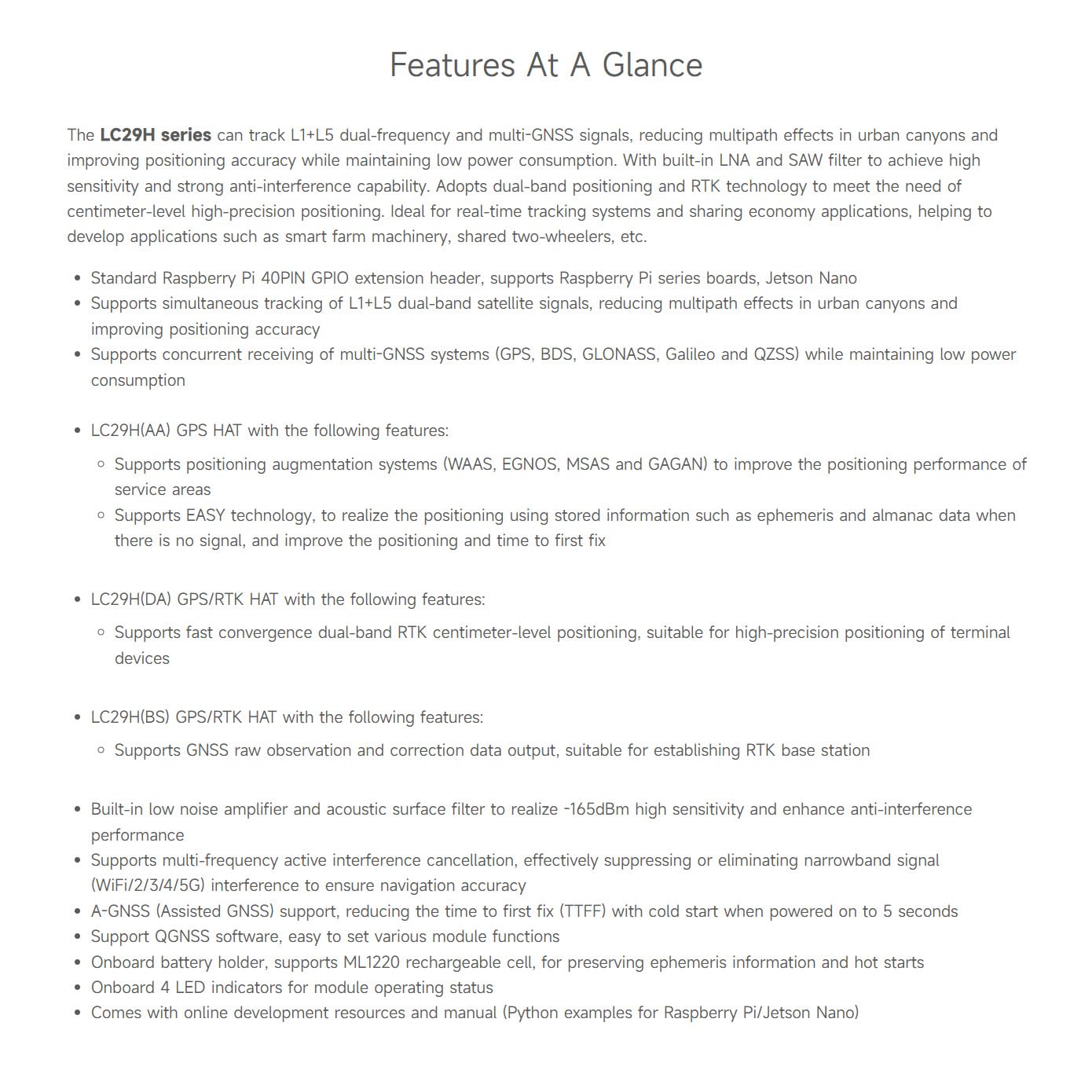

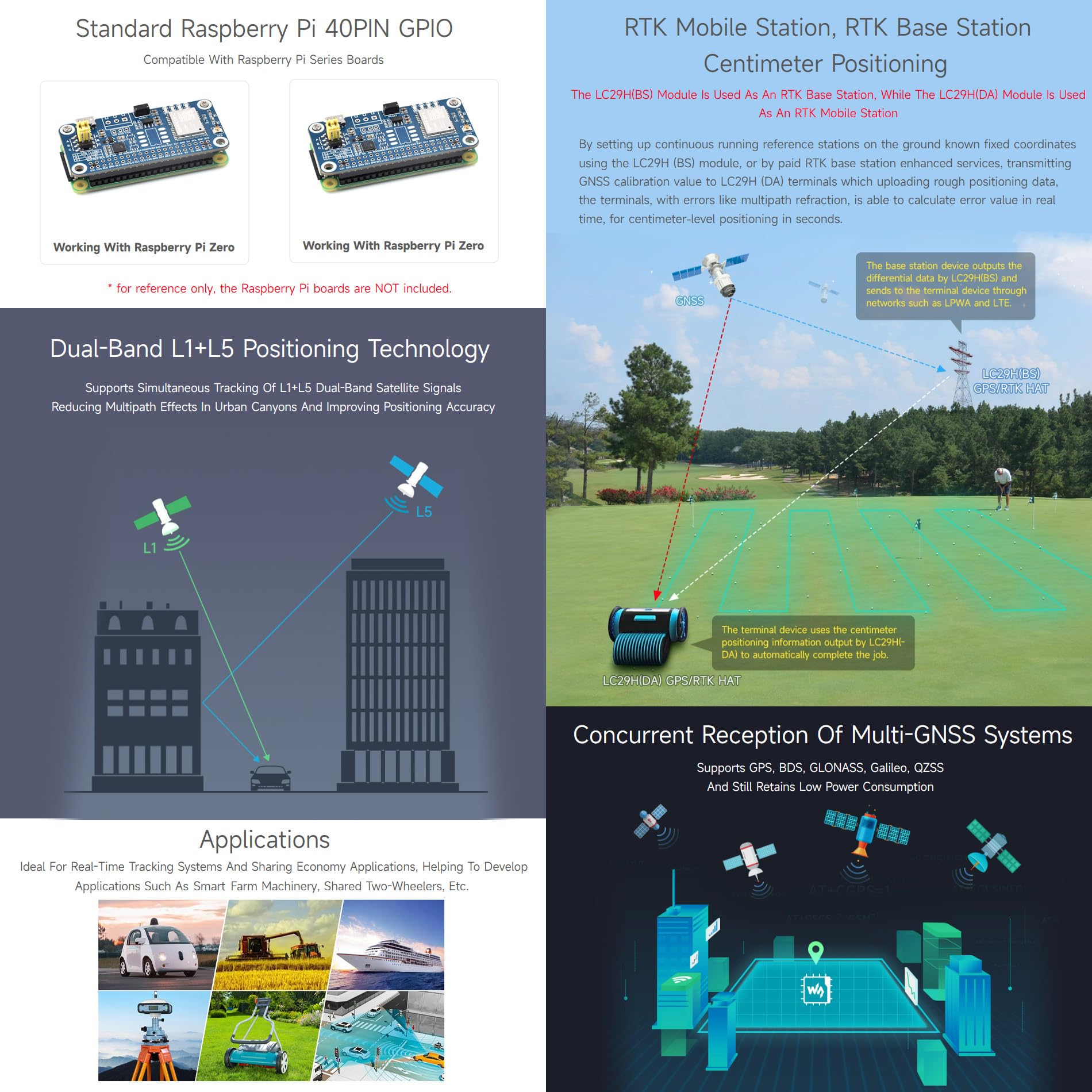

- Supports fast convergence dual-band RTK centimeter-level positioning, suitable for high-precision positioning of terminal devices

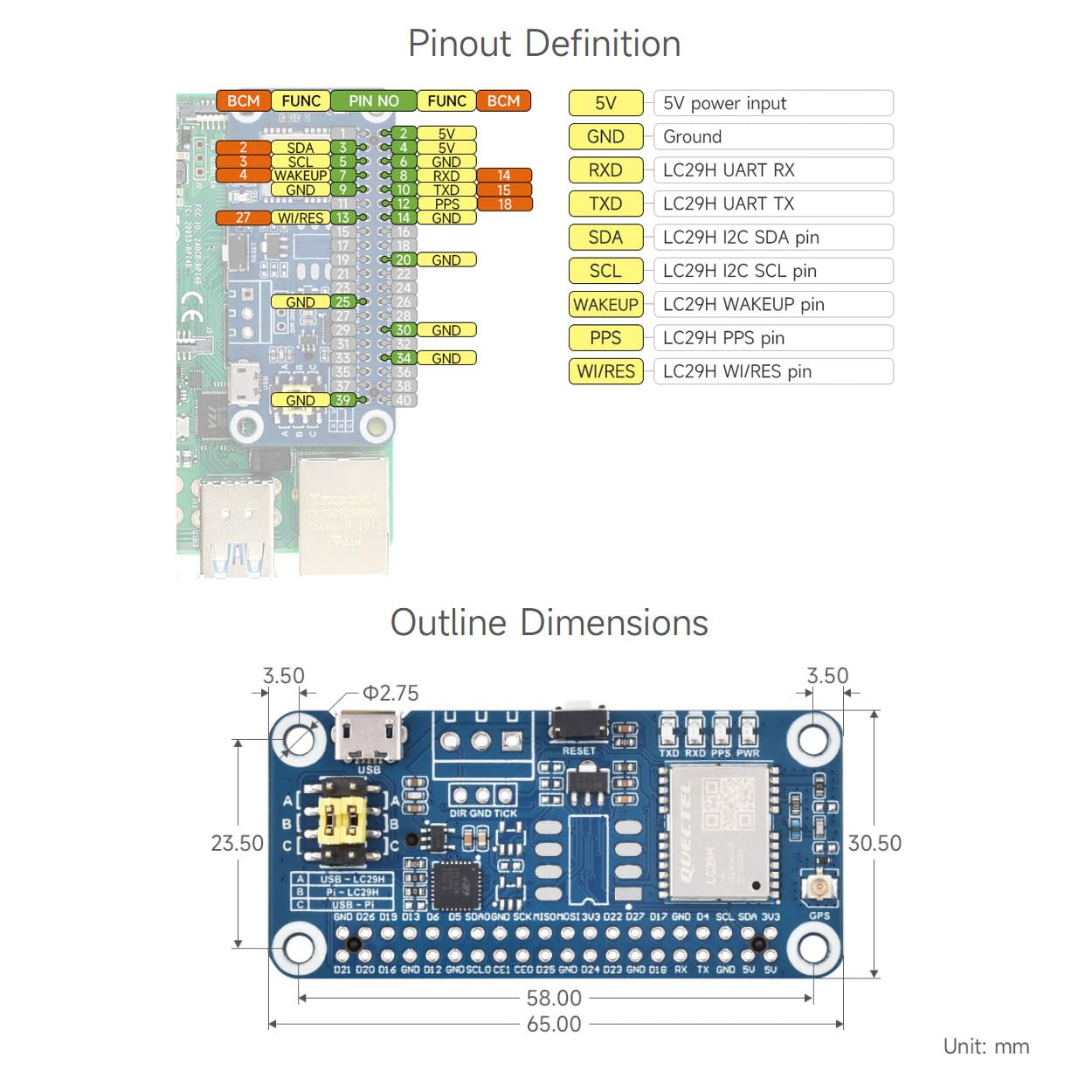

- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano Supports simultaneous tracking of L1+L5 dual-band satellite signals, reducing multipath effects in urban canyons and improving positioning accuracy
- Supports concurrent receiving of multi-GNSS systems (GPS, BDS, GLONASS, Galileo and QZSS) while maintaining low power consumption

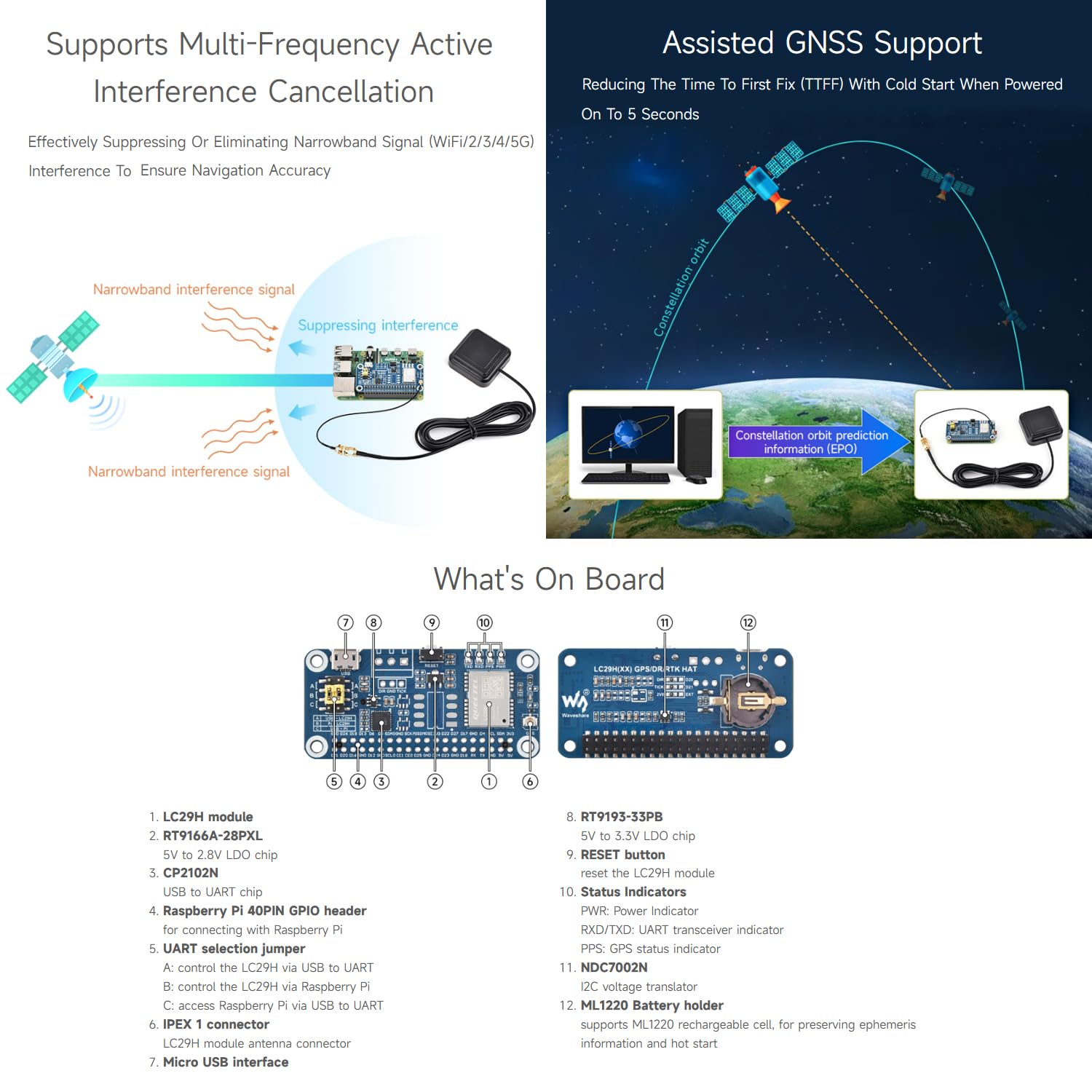

- Built-in low noise amplifier and acoustic surface filter to realize -165dBm high sensitivity and enhance anti-interference performance Supports multi-frequency active interference cancellation, effectively suppressing or eliminating narrowband signal (WiFi/2/3/4/5G) interference to ensure navigation accuracy
- A-GNSS (Assisted GNSS) support, reducing the time to first fix (TTFF) with cold start when powered on to 5 seconds Support QGNSS software, easy to set various module functions
